Vehicle Specifications

• Air Conditioning
• AM / FM Radio

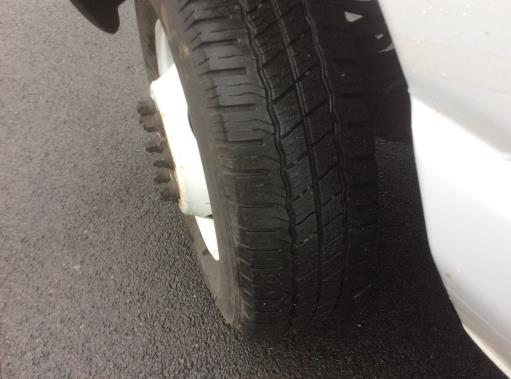

• Tire size: LT215/85 RX16E
• Power brakes: Hydraulic, 4 wheel disc AntiLock
• Power outlet on dash: 12 volt
• 115 AMP Alternator
• Tinted Glass
• Dual Air Bags
• Power Steering / Interval Wipers
• Sealed Beam Halogen Headlight
• Heavy duty front springs, front and rear stabilizer bars
• Heavy Duty Shock Absorbers
• Xtra Heavy Duty Twin I-Beam Front Axle

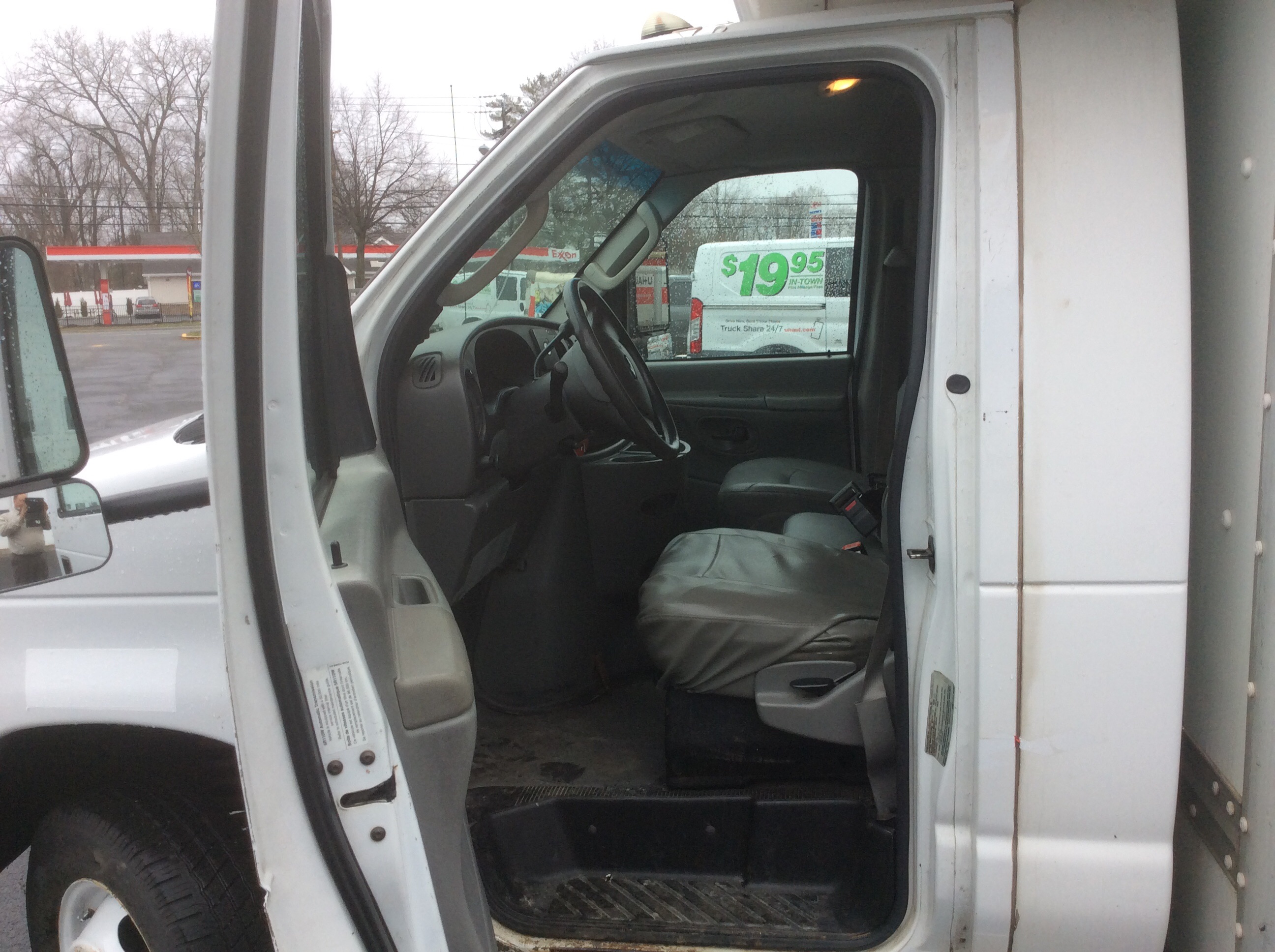

• Dual Bucket w/ Jump Seat

• Box roofline: 14'
• Box floor inside: 10' 9"
• Box inside width: 7' 7"
• Box inside height: 7' 2"
• Box outside width: 8'
• Box deck height: 32"
• Wheelbase: 158"

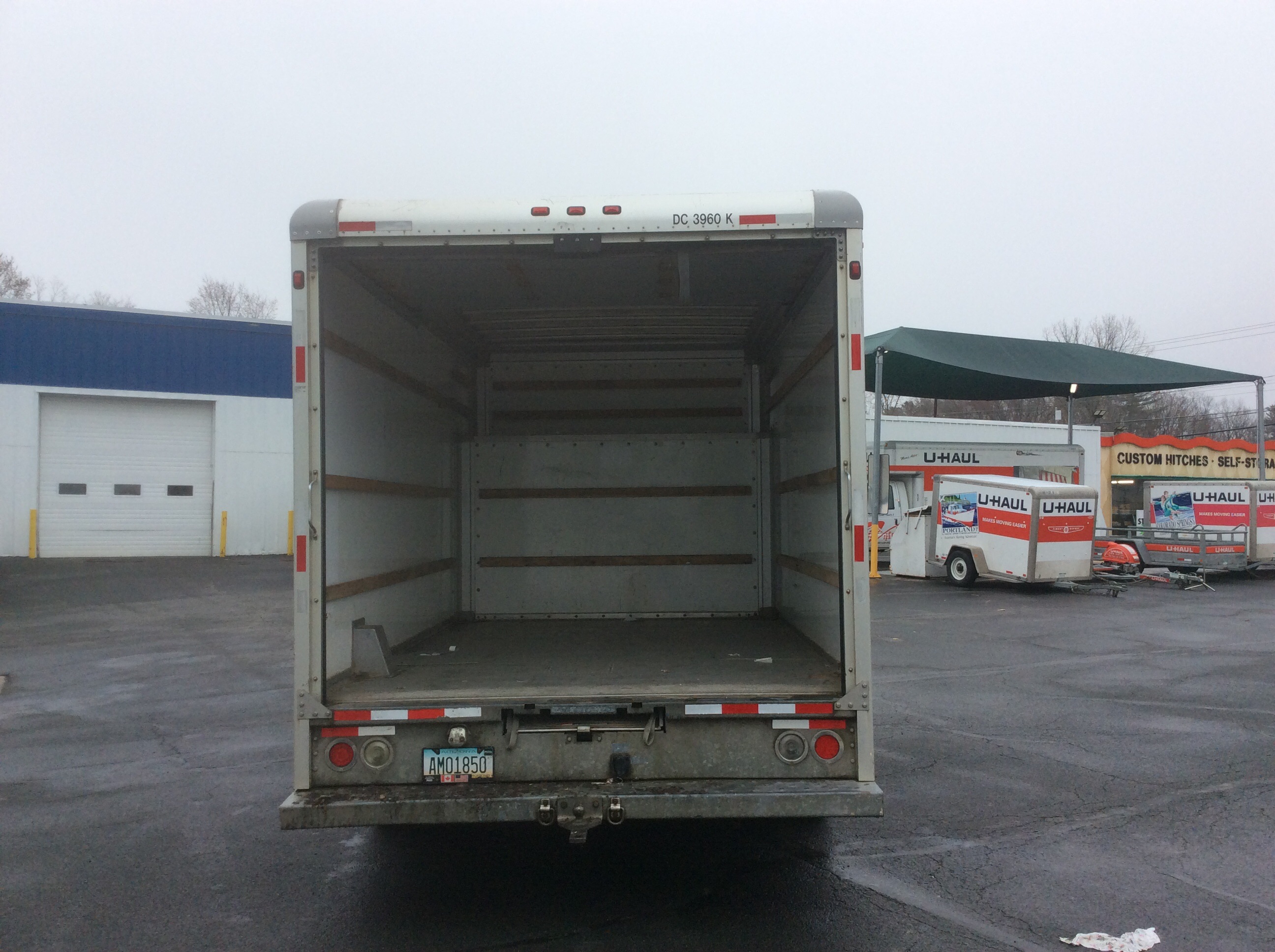

• Rear door opening height: 6' 8"
• Rear door opening width: 6' 6"

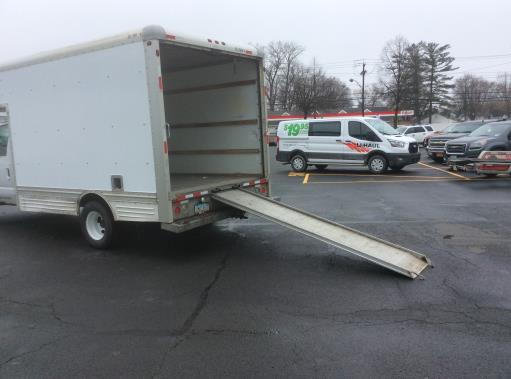

• Loading ramp length: 10'
• Loading ramp inside width: 25"
• Loading ramp width: 27"
• Top to ground height: 11'

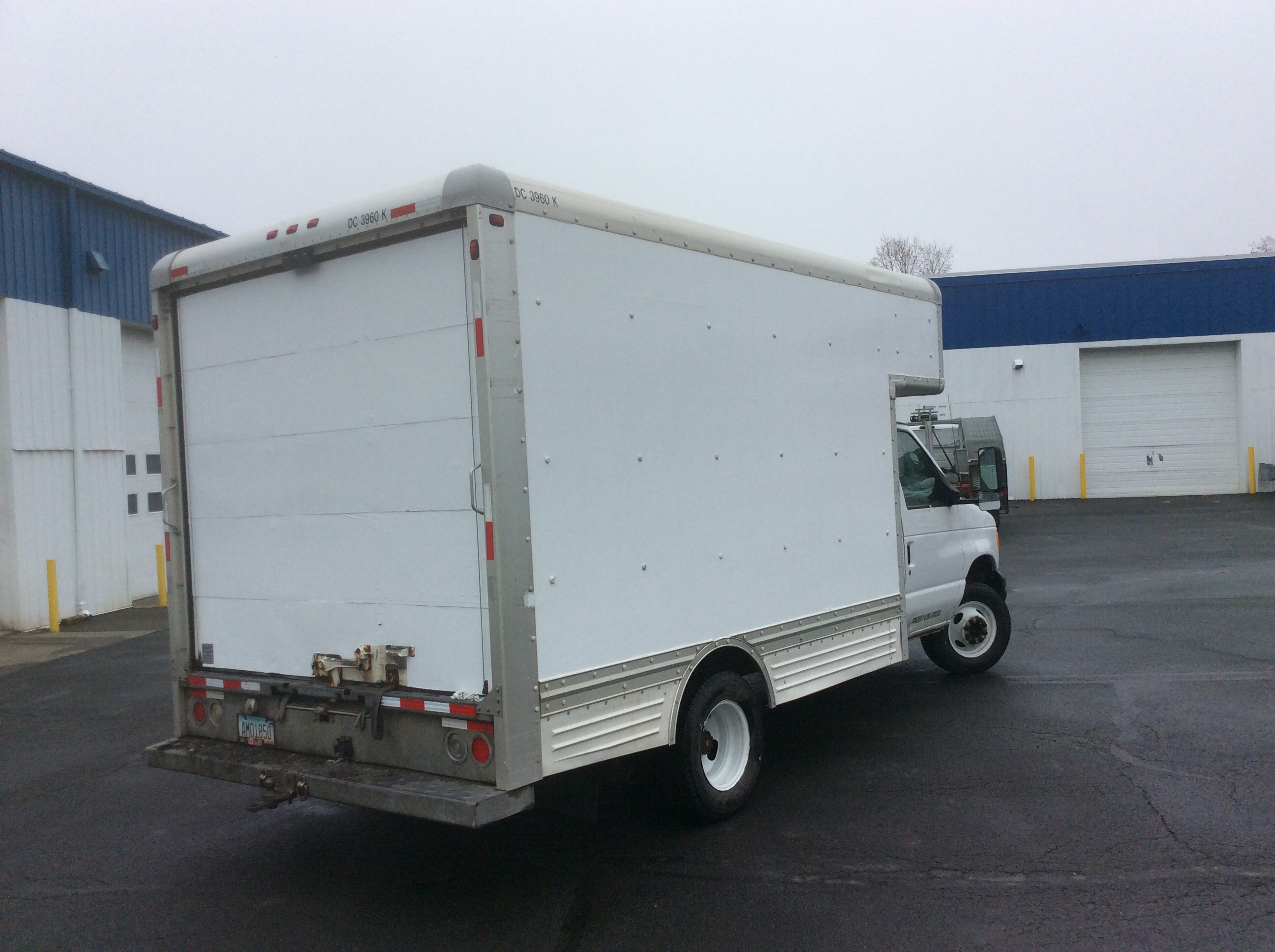

• Roll Up Door
• Cab to Axle: 8'3"
• Overall Vehicle Length: 22'
• Overall Vehicle Width with Box: 7'11"
• Back of Cab to End of Frame: 11'6"
• Overall Vehicle Clearance Height (W/o Box): 6'8"
• Overall Vehicle Clearance Height with Box: 9'7"

• Payload: 6,010 lbs.
• Towing Capacity: 10,000 lbs.

• Engine: 6.8 L V-10 / Gas engine, 305 H.P. @4250 RPM
• Transmission: 5 speed overdrive, 5R110W
• Differential & gear ratio: Heavy Duty Dana 4.56 Gear Ratio
• Auxiliary Transmission Oil Cooler
• Torque 420 ft-lbs: @3250 RPM
• Fuel tank capacity: 40 gal
• Estimated mile/gal: 8.90 miles/gal
