Vehicle Specifications

• 2 Inch Ball Hitch
• 120 AMP Alternator
• AM / FM Radio
• Air Conditioning
• Dual Air Bags
• Dual Rear Wheels
• Class Four Rear Hitch
• Extra Heavy Duty Twin I-Beam Front Axle
• Flat Extended Frame Rails for Mounting Body
• Heavy Duty Front Springs, Front and Rear Stabilizer Bars
• Heavy Duty Shock Absorbers
• LED Light Compatible
• Power brakes: 4 wheel disc
• Rear Wheel Anti Lock Brakes
• Power outlet on dash: 12 volt
• Power Steering / Interval Wipers
• Rear Overload Springs
• Rear Step Bumper
• 2 Inch Ball Hitch
• Sealed Beam Halogen Headlights
• Tilt Steering

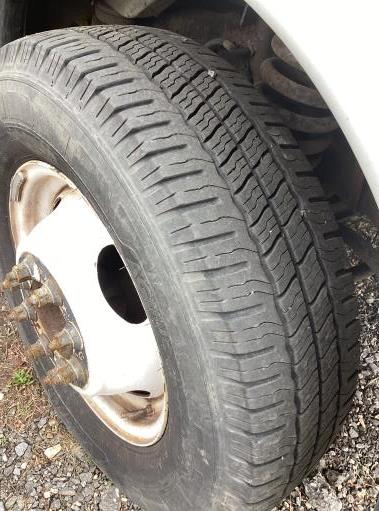

• Tire Size: LT225/75/R16
• Wired for Trailer Brake Control

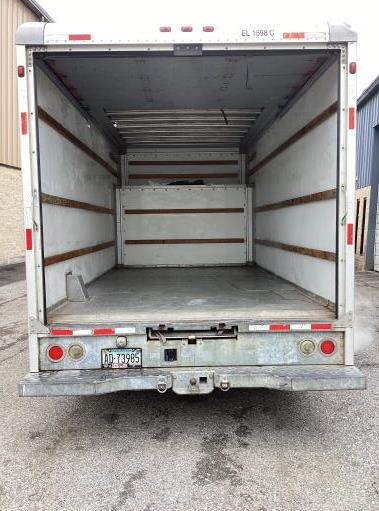

• Box Roofline Inside: 201.25”
• Box Floor Inside: 170.75”
• Box Floor Width: 93.50”
• Box Inside Height: 86.13”
• Box Inside Width: 92”
• Box Deck Height: 34”
• Box Outside Height: 102”
• Box Outside Width: 95.50”
• Back of Cab to End of Frame:13'7"
• Cab to Axle: 9'8"

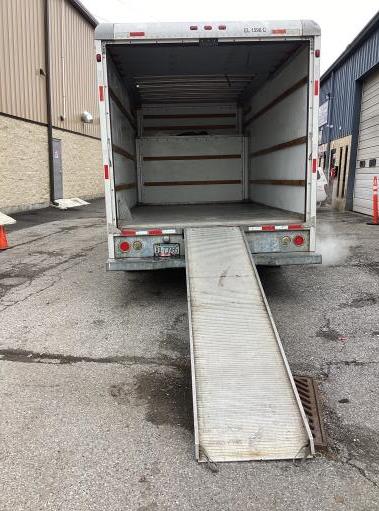

• Loading Ramp Length: 119.75”
• Loading ramp inside width: 25''
• Loading Ramp Width: 26.50”
• Overall Vehicle Length: 23'5"
• Overall Vehicle Width with Box: 7'11"
• Overall Vehicle Clearance Height (W/o Box): 6'8"
• Overall Vehicle Height with Box: 10'10"
• Rear Door Opening Height: 77”
• Rear Door Opening Width: 87”
• Top to Ground Height: 119”
• Wheelbase: 176"

• Gross Vehicle Weight: 14,050 lbs.
• Gross Combined Weight Rating: 20,000 lbs.
• Front Gross Axle Weight Rating: 5,000 lbs.
• Rear Gross Axle Weight Rating: 9,600 lbs.
• Empty Weight: 8,220 lbs.
• Payload: 5,830 lbs.
• Towing Capacity: 10,000 lbs.

• Auxiliary Transmission Oil Cooler
• Engine: 6.8L V-10 Gas, 10 cylinder engine, 305 H.P. @4250 RPM
• Transmission: E40D / 5 speed automatic with overdrive, 5R110W
• Differential: Dana 4.56 Ratio Regular Axle
• Torque 420 ft-lbs: @3250 RPM
• Fuel tank capacity: 40 gal.
