Vehicle Specifications

• 2 Inch Ball Hitch
• 145 AMP Alternator
• AM / FM Radio
• Air Bag: Driver side
• Air Conditioning
• Aluminized, Stainless-Steel Muffler and Tailpipe
• Front suspension: Independent coil springs with stabilizer bar
• Heavy Duty Shocks
• Power brakes: 4 wheel AntiLock disc
• Power Steering / Wipers Intermittent
• Rear suspension: Multi-leaf springs

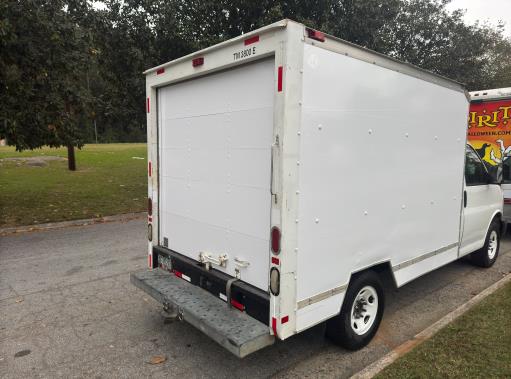

• Roll Up Door

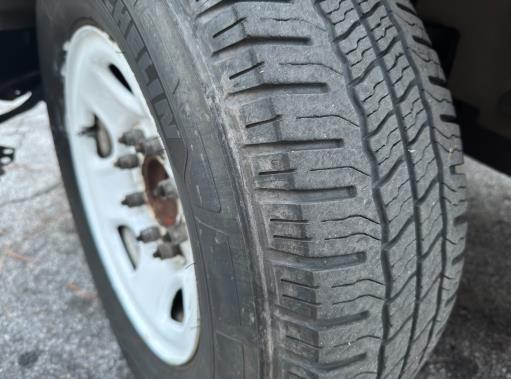

• Tire size: 225/75/R16
• Tow/Haul Mode With External Transmission Oil Cooler

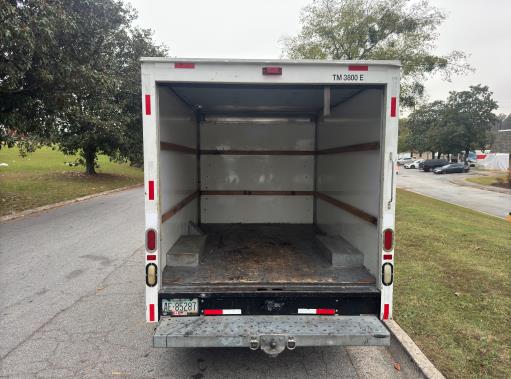

• Box Roofline Inside: 120”
• Box Floor Inside: 120”
• Box Floor Width: 78.50”
• Box Inside Height: 74”
• Box Inside Width: 75.50”
• Box Deck Height: 29.50”
• Box Outside Height: 93.50”
• Box Outside Width: 79.50”
• Back of Cab to End of Frame: 10'2"
• Cab to Axle: 6'6"
• Centerline of Axle to Back of Box: 45”
• Overall Vehicle Length: 19'5"
• Overall Vehicle Width with Box: 6'7"
• Overall Vehicle Clearance Height (W/o Box): 6'9"
• Overall Vehicle Clearance Height with Box: 8'7"
• Rear door opening height: 5' 7"
• Rear door opening width: 5' 11.5"
• Top to Ground Height: 103”
• Wheelbase: 139"

• Gross vehicle weight: 8,600 lbs.
• Gross combined vehicle rating: 13,000 lbs.
• Front Gross Axle Weight Rating: 4,100 lbs.
• Rear Gross Axle Weight Rating: 5,360 lbs.
• Empty Weight: 5,790 lbs.
• Payload: 2,810 lbs.
• Towing Capacity: 6,000 lbs.

• Engine: Vortec 4.8 Liter 283 cubic inch V8 gas. 285 HP @5400 RPM
• Transmission: 6 speed automatic, 6L90 w/ heavy duty overdrive
• Differential gear ratio: 3.42
• Torque 295 ft-lbs: @4600 RPM
• Fuel tank capacity: 33 gal.
