Vehicle Specifications

• 2 Inch Ball Hitch
• 120 AMP Alternator
• AM / FM Stereo
• Air Conditioning
• Dual Air Bags
• Dual Rear Wheels
• Xtra Heavy Duty Twin I-Beam Front Axle
• Flat Extended Frame Rails for Mounting Body
• Frame Stiffeners
• Reinforced Frame
• Fully Enclosed Cab
• Heavy duty front springs, front and rear stabilizer bars
• Heavy Duty Shock Absorbers
• LED Light Compatible
• Power brakes: Hydraulic, 4 wheel disc AntiLock
• Power outlet on dash: 12 volt
• Dual Bucket w/ Jump Seat
• Power Steering / Interval Wipers
• Rear Overload Springs
• Rear Step Bumper
• Sealed Beam Halogen Headlight
• Tilt Steering

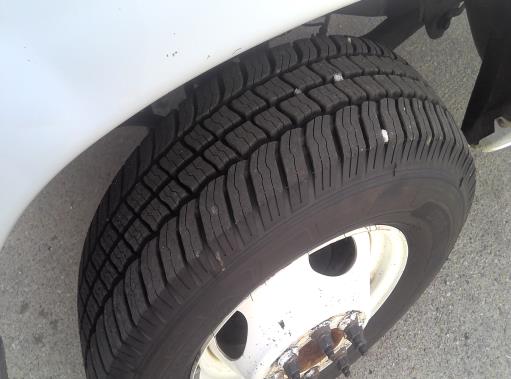

• Tire size: LTX225/75 R16E
• Wired for Trailer Brake Control

• Back of Cab to End of Frame: 17'
• Cab to Axle: 11'5"
• Overall Cab Height: 6'8"
• Overall Vehicle Length: 26'
• Wheelbase: 202" (16'10")

• Gross Vehicle Weight: 14,500 lbs max
• Gross Combined Weight Rating: 20,000 lbs.
• Front Gross Axle Weight Rating: 5,000 lbs.
• Rear Gross Axle Weight Rating: 9,600 lbs.
• Chassis Weight (No Box): 6,520
• Towing Capacity: 10,000 lbs.

• Auxiliary Transmission Oil Cooler
• Engine: 6.8 L V-10 / Gas engine H.P. 305 @4250 RPM
• Transmission: 5 speed overdrive 5R110W
• Differential: Heavy Duty Dana 4.56 gear ratio
• Torque 420 ft-lbs: @3250 RPM
• Fuel tank capacity: 40 gal
