Vehicle Specifications

• Air Conditioning
• AM / FM Radio
• Dual Rear Wheels
• Power brakes: 4 wheel disc
• Power Steering / Interval Wipers
• Rear Wheel Anti Lock Brakes
• Roll Up Door

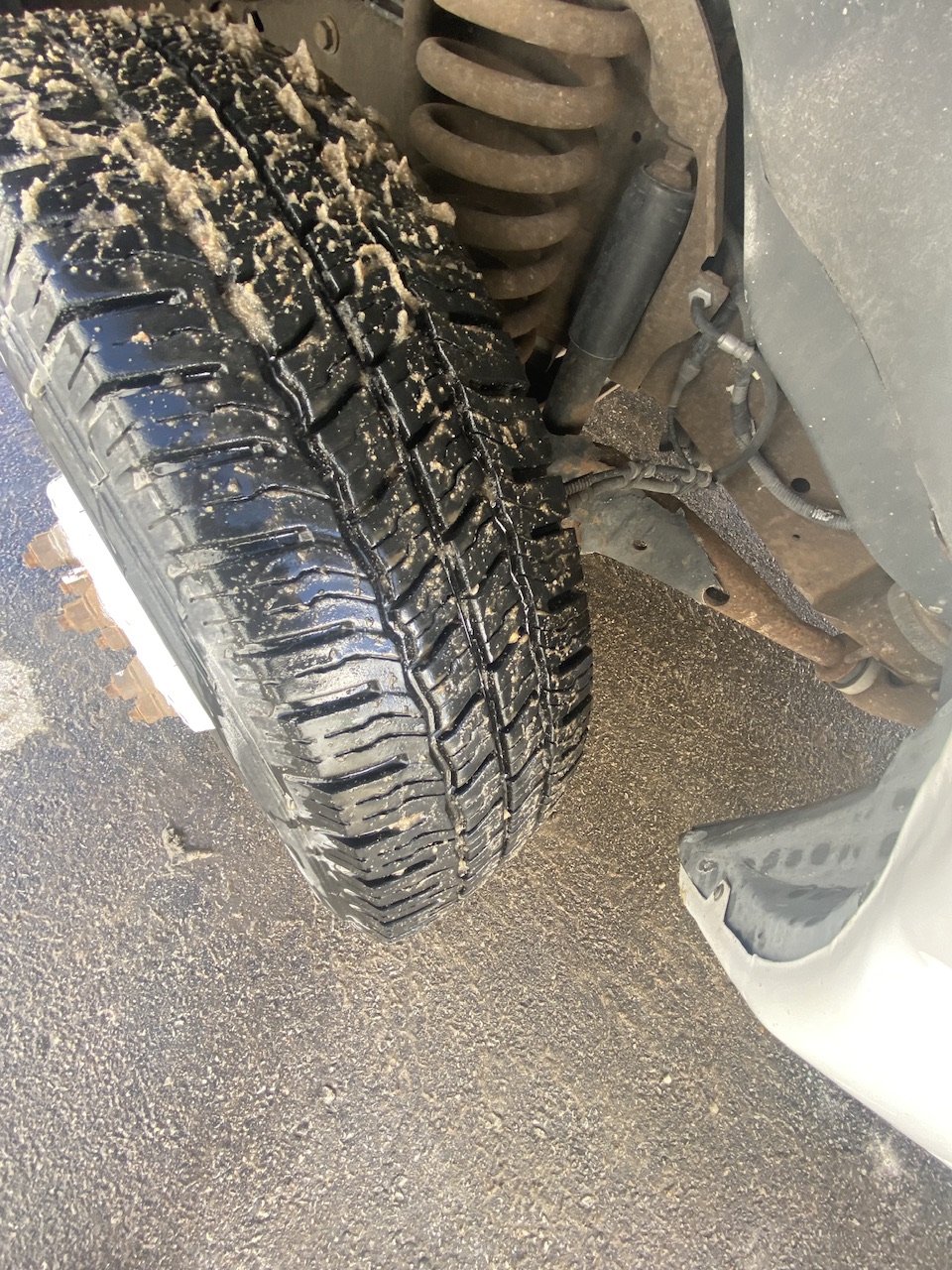

• Tire size: LT225/75R/16
• 2 Bucket Seats w/ Jump Seat
• 130 AMP Alternator
• Fail Safe Cooling System
• Cloth Seats
• Power outlet on dash: 12 volt
• Sealed Beam Halogen Headlights
• Tinted Glass
• Tilt Steering

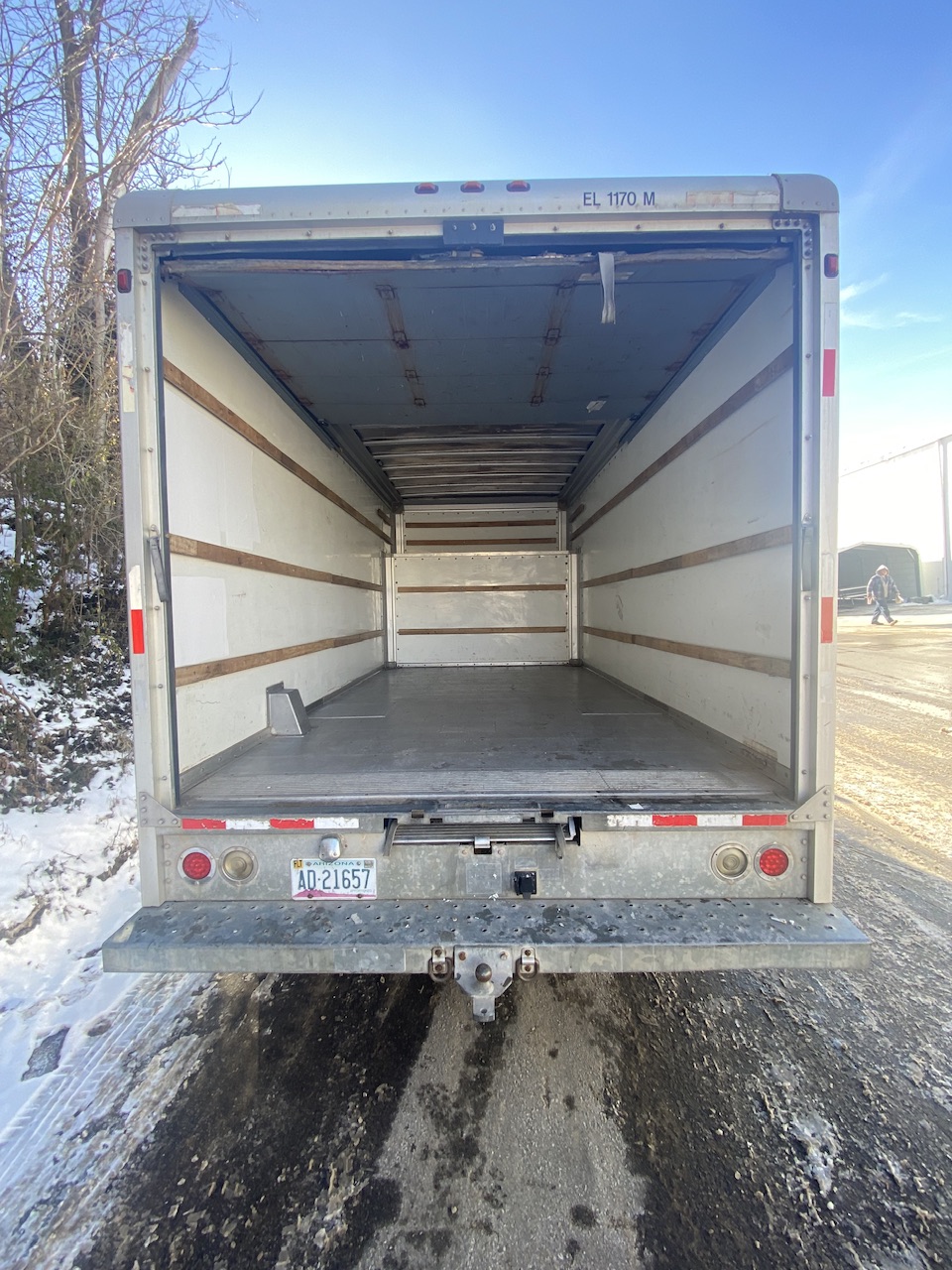

• Box roofline inside: 16' 8"
• Box floor inside: 14' 1"
• Box inside width: 7' 7"
• Box inside height: 7' 2"
• Box deck height: 32"
• Box outside width: 8'
• Box outside height: 11'
• Box floor width: 7' 7"
• Width between wheel wells is: 48''

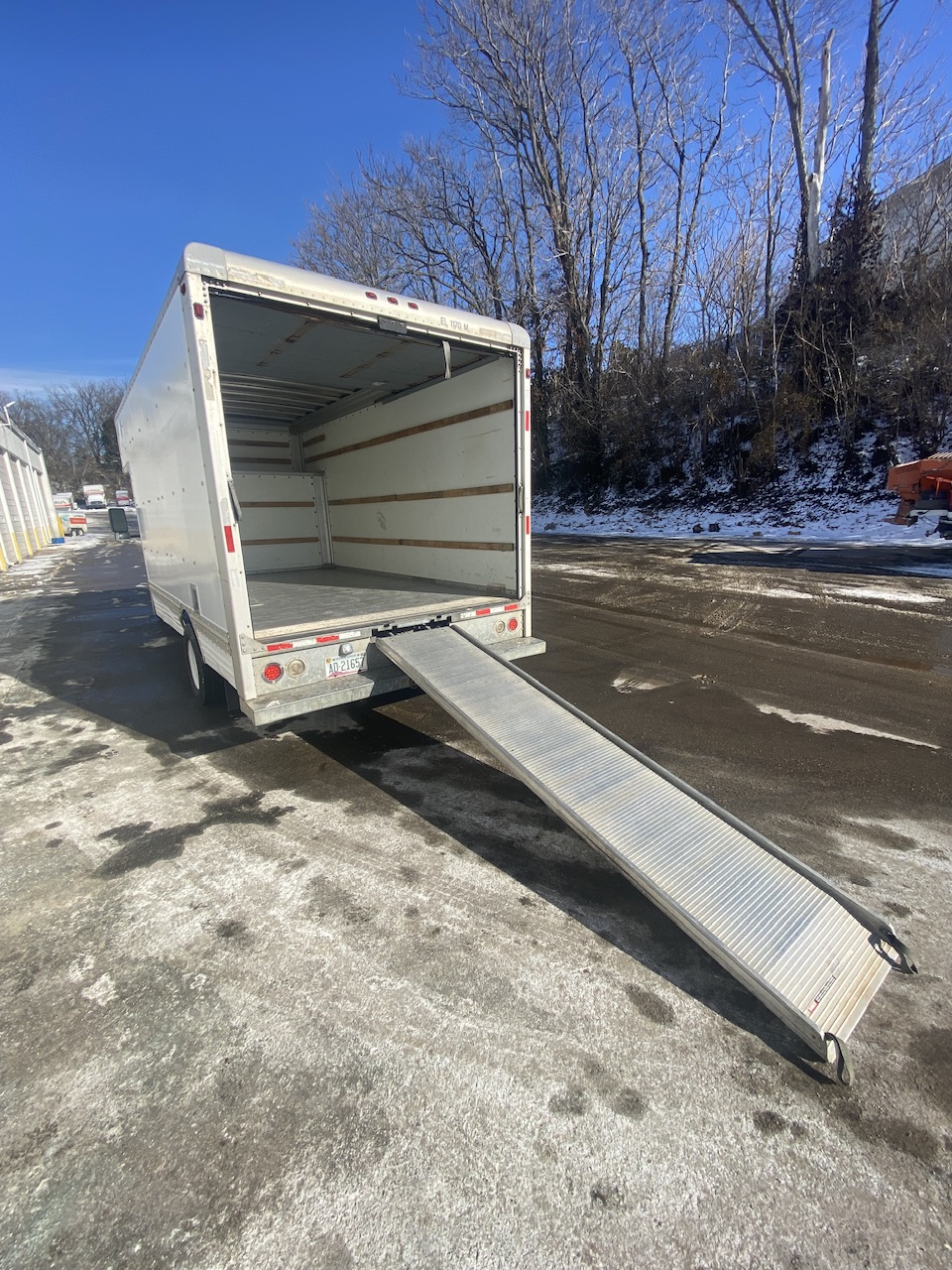

• Loading ramp length: 10'
• Loading ramp width: 26''
• Loading ramp inside width: 25''
• Centerline of axle to back of box: 70''
• Rear door opening height: 6' 5"
• Rear door opening width: 7' 3"
• Roll Up Rear Door
• Cab to Axle: 9'8"
• Overall Vehicle Length: 23'5"
• Overall Vehicle Width with Box: 7'11"
• Back of Cab to End of Frame:13'7"
• Overall Vehicle Clearance Height (W/o Box): 6'8"
• Overall Vehicle Height with Box: 10'10"

• Hitch rating: 10,000 lbs.
• Payload: 5,830 lbs.
• Towing Capacity: 10,000 lbs.

• Engine: 6.8L V-10 Gas, 10 cylinder engine, 305 H.P. @4250 RPM
• Multi-port electronic fuel injection
• Transmission: E40D / 5 speed automatic with overdrive, 5R110W
• Auxiliary Transmission Oil Cooler
• Differential: Dana 4.56 Ratio Regular Axle
• Torque 420 ft-lbs: @3250 RPM
• Fuel tank capacity: 40 gal.
• Approximate MPG: 8.80
