Vehicle Specifications

• 2 Inch Ball Hitch
• 120 AMP Alternator
• AM / FM Radio
• Air Conditioning
• Dual Air Bags
• Dual Rear Wheels
• Xtra Heavy Duty Twin I-Beam Front Axle
• Flat Extended Frame Rails for Mounting Body
• Heavy duty front springs, front and rear stabilizer bars
• Heavy Duty Shock Absorbers
• LED Light Compatible
• Power brakes: Hydraulic, 4 wheel disc AntiLock
• Power outlet on dash: 12 volt
• Power Steering / Interval Wipers
• Rear Overload Springs
• Rear Step Bumper
• Sealed Beam Halogen Headlight
• Tilt Steering

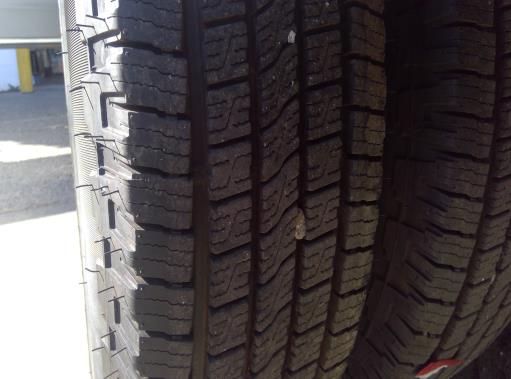

• Tire Size: LT225/75/R16
• Wired for Trailer Brake Control

• Box Roofline Inside: 174”
• Box Floor Inside: 143”
• Box Floor Width: 93.50”
• Box Inside Height: 86.13”
• Box Inside Width: 92”
• Box Deck Height: 34”
• Box Outside Height: 102”
• Box Outside Width: 95.50”
• Back of Cab to End of Frame: 11'6"
• Cab to Axle: 8'3"
• Centerline of Axle to Back of Box: 60.75”

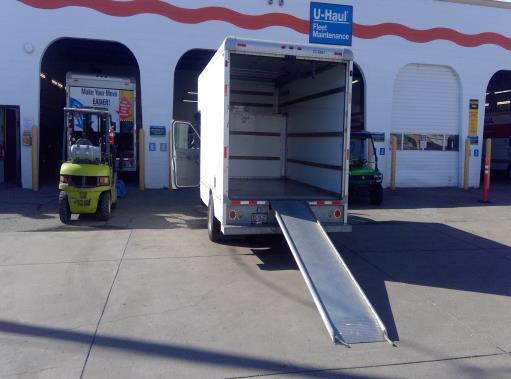

• Loading Ramp Length: 119.75”
• Loading ramp inside width: 25"
• Loading Ramp Width: 26.50"
• Overall Vehicle Width with Box: 7'11"
• Overall Vehicle Clearance Height (W/o Box): 6'8"
• Overall Vehicle Clearance Height with Box: 9'7"
• Roll Up Door
• Rear Door Opening Height: 77”
• Overall Vehicle Length: 22'
• Rear Door Opening Width: 87”
• Top to Ground Height: 119”

• Gross vehicle weight: 14,050 lbs.
• Gross Combined Weight Rating: 20,000 lbs.
• Front Gross Axle Weight Rating: 5,000 lbs.
• Rear Gross Axle Weight Rating: 9,600 lbs.
• Payload: 6,010 lbs.
• Towing Capacity: 10,000 lbs.
• Empty Weight: 8,040 lbs.

• Auxiliary Transmission Oil Cooler
• Engine: 6.8 L V-10 / Gas engine, 305 H.P. @4250 RPM
• Transmission: 5 speed overdrive, 5R110W
• Heavy Duty Dana Differential with 4.56 Gear Ratio
• Torque 420 ft-lbs: @3250 RPM
• Fuel tank capacity: 40 gal
• Estimated mile/gal: 8.90 miles/gal
